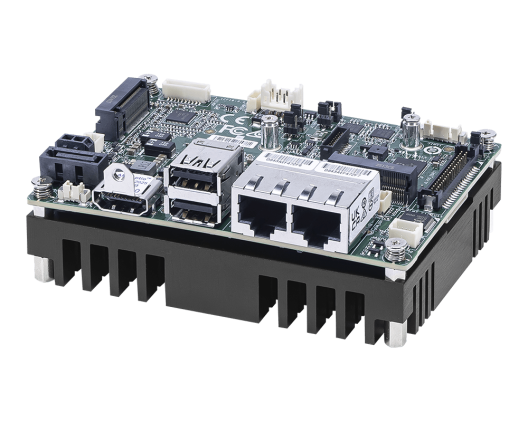

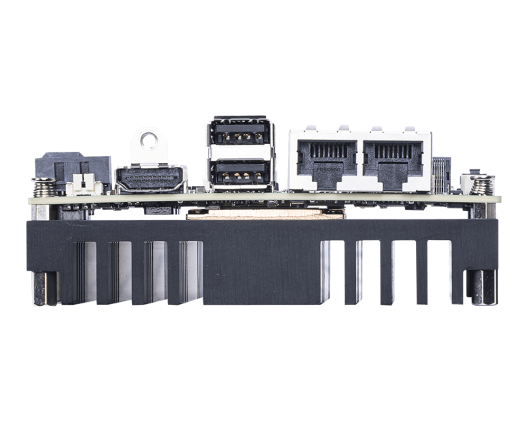

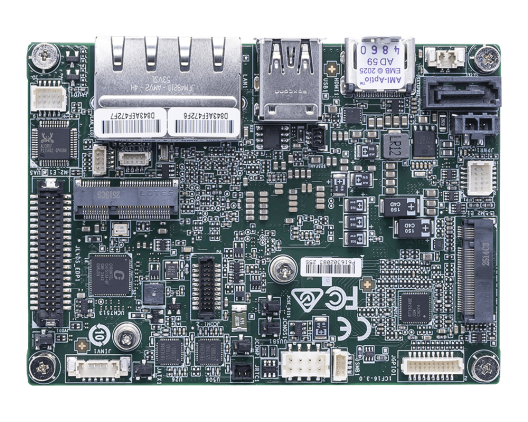

MS-CF16 V3.0
MS-CF16 V3.0
MS-CF16 V3.0
MS-CF16 V3.0
MS-CF16 V3.0
MS-CF16 V3.0

Pico-ITX SBC with Intel® Alder Lake-N/Amston Lake/Twin Lake for Fanless, Low-Power, High-Performance, Wide Temperature & Harsh environment Solution

  • Intel® Alder Lake-N/ Amston Lake/Twin Lake Series SoC
  • LPDDR5 4800 MHz onboard memory up to 16GB
  • Dual independent displays: HDMI, LVDS/eDP
  • 1 2.5 GbE/1 GbE LAN with RJ-45
  • 2 USB 3.2 (Bottom layer USB 3.2 Gen 2 x 1, Top layer USB 3.2 Gen 1), 2 USB 2.0, 2 COM (RS-232/422/485), GPIO, Audio
  • 1 M.2 B Key, 1 M.2 E Key Slot
  • SATA 3.0 for storage
  • Wide operating temperature : -40~70°C
  • DC-IN 12V
  • Product Specifications
  • Ordering-Information
  • Packing-List
  • Optional-Items

Product Specifications

  • Part Number
  • Alder-Lake-N-SKU
  • Amston-Lake-SKU
  • Twin-Lake-SKU

Processor

  • CPU
  • Intel® IOTG Alder Lake-N Processor N97, QC, 12W
  • Intel® IOTG Amston Lake Atom, X7433RE, QC, 9W
  • Intel® Twin Lake-N Processor N150, QC, 6W
  • Frequency
  • N97, 2.0GHz, up to 3.6 GHz
  • X7433RE, 1.5GHz, up to 3.4 GHz
  • N150, 0.8GHz, up to 3.6 GHz
  • L2 Cache
  • 6MB
  • 6MB
  • 6MB
  • CPU Type
  • BGA
  • BGA
  • BGA
  • Chipset
  • Integrated in SoC
  • Integrated in SoC
  • Integrated in SoC
  • BIOS
  • AMI
  • AMI
  • AMI

Memory

  • Technology
  • Single-channel LPDDR5 4800 MHz
  • Single-channel LPDDR5 4800 MHz
  • Single-channel LPDDR5 4800 MHz
  • Max. Capacity
  • Up to 16GB
  • Up to 16GB
  • Up to 16GB
  • Socket
  • Onboard
  • Onboard
  • Onboard

Display

  • Controller
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Intel® HD Graphics
  • Graphic Memory
  • Depends on CPU
  • Depends on CPU
  • Depends on CPU
  • LVDS
  • Dual Channel 18/24-bit (Connector shared with eDP)
  • Dual Channel 18/24-bit (Connector shared with eDP)
  • Dual Channel 18/24-bit (Connector shared with eDP)
  • eDP
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • 1 (Connector shared with LVDS)
  • VGA
  • --
  • --
  • --
  • DVI
  • --
  • --
  • --
  • HDMI
  • 1
  • 1
  • 1
  • DisplayPort
  • --
  • --
  • --
  • Multiple Display
  • 2 independent displays
  • 2 independent displays
  • 2 independent displays
  • Display Interface
  • LVDS up to 1920 x 1200 @60Hz
    eDP up to 1920 x 1080 @60Hz
    HDMI up to 3840 x 2160 @30Hz
  • LVDS up to 1920 x 1200 @60Hz
    eDP up to 1920 x 1080 @60Hz
    HDMI up to 3840 x 2160 @30Hz
  • LVDS up to 1920 x 1200 @60Hz
    eDP up to 1920 x 1080 @60Hz
    HDMI up to 3840 x 2160 @30Hz

Ethernet

  • Controller
  • 1 x Realtek® RTL8125BG-CG 2.5GbE LAN
    1 x Realtek® RTL8111K-CG 1GbE LAN
  • 1 x Realtek® RTL8125BI-CG 2.5GbE LAN
    1 x Realtek® RTL8111KI-CG 1GbE LAN
  • 1 x Realtek® RTL8125BG-CG 2.5GbE LAN
    1 x Realtek® RTL8111K-CG 1GbE LAN

Audio

  • Controller
  • Realtek® ALC897 High Definition Audio Codec
  • Realtek® ALC897 High Definition Audio Codec
  • Realtek® ALC897 High Definition Audio Codec

Super I/O

  • Controller
  • Fintek F81966AB-I
  • Fintek F81966AB-I
  • Fintek F81966AB-I

H/W Monitor

  • Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • 256-level Watchdog Timer
  • Smart Fan
  • --
  • --
  • --

TPM

  • Controller
  • Infineon® SLB 9672VU2.0
  • Infineon® SLB 9672XU2.0
  • Infineon® SLB 9672VU2.0

I/O Interface

  • PS/2
  • --
  • --
  • --
  • USB
  • 2 x USB 2.0 ports (internal)
    2 x USB 3.2 ports (rear)
    (Bottom layer USB 3.2 Gen 2 x 1, Top layer USB 3.2 Gen 1)
  • 2 x USB 2.0 ports (internal)
    2 x USB 3.2 ports (rear)
    (Bottom layer USB 3.2 Gen 2 x 1, Top layer USB 3.2 Gen 1)
  • 2 x USB 2.0 ports (internal)
    2 x USB 3.2 ports (rear)
    (Bottom layer USB 3.2 Gen 2 x 1, Top layer USB 3.2 Gen 1)
  • Parallel
  • --
  • --
  • --
  • Serial
  • 2 x COM ports (internal)
    COM1~2: RS-232/422/485, 0V/5V/12V
  • 2 x COM ports (internal)
    COM1~2: RS-232/422/485, 0V/5V/12V
  • 2 x COM ports (internal)
    COM1~2: RS-232/422/485, 0V/5V/12V
  • GPIO
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V
  • 16-bits (8 x GPI; 8 x GPO), 5V

Expansion Slot

  • PCIe x16
  • --
  • --
  • --
  • PCIe x8
  • --
  • --
  • --
  • PCIe x4
  • --
  • --
  • --
  • PCIe x1
  • --
  • --
  • --
  • PCI
  • --
  • --
  • --
  • M.2
  • 1 x E key 2230 (PCIe x1 + USB 2.0)
    1 x B key 2242/3042 (PCIe x1/SATA 3.0 + USB 3.2 Gen 2 + USB 2.0)
  • 1 x E key 2230 (PCIe x1 + USB 2.0)
    1 x B key 2242/3042 (PCIe x1/SATA 3.0 + USB 3.2 Gen 2 + USB 2.0)
  • 1 x E key 2230 (PCIe x1 + USB 2.0)
    1 x B key 2242/3042 (PCIe x1/SATA 3.0 + USB 3.2 Gen 2 + USB 2.0)
  • Mini-PCIe
  • --
  • --
  • --

Storage

  • SATA
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • 1 x SATA 3.0
  • IDE
  • --
  • --
  • --
  • eSATA
  • --
  • --
  • --
  • CFast
  • --
  • --
  • --
  • mSATA
  • --
  • --
  • --
  • CompactFlash
  • --
  • --
  • --

Power Supply

  • DC Input
  • DC-in 12V
  • DC-in 12V
  • DC-in 12V
  • ATX
  • --
  • --
  • --

Environment

  • Operating Temperature
  • -10 ~ 60°C
    Note:
    1. Thermal w/ Airflow:0.7m/s
    2. The standard thermal solution only supports TDP up to 12W.
  • -40 ~ 70°C
    Note:
    1. Thermal w/ Airflow:0.7m/s
    2. The standard thermal solution only supports TDP up to 9W.
  • -10 ~ 60°C
    Note:
    1. Thermal w/ Airflow:0.7m/s
    2. The standard thermal solution only supports TDP up to 6W.
  • Operating Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Humidity
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • 10 ~ 90%, non-condensing
  • Storage Temperature
  • -20 ~ 80°C
  • -40 ~ 80°C
  • -20 ~ 80°C

Form Factor

  • Dimensions
  • 101 x 73 mm (Pico-ITX)
  • 101 x 73 mm (Pico-ITX)
  • 101 x 73 mm (Pico-ITX)
  • Weight
  • 0.30 kg
  • 0.30 kg
  • 0.30 kg

Certification

  • EMC
  • CE, FCC Class B, BSMI, VCCI, RCM, UKCA, IC
  • CE, FCC Class B, BSMI, VCCI, RCM, UKCA, IC
  • CE, FCC Class B, BSMI, VCCI, RCM, UKCA, IC

Software Platform

  • OS Support
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
    Linux (Support by request)
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
    Linux (Support by request)
  • Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
    Linux (Support by request)

Ordering Information

  • Part Number
  • Description
  • 916-CF16-011
  • MS-CF16/606-CF16-210/806-CF16-026 30 ADL-N N97,LPDDR5 8GB,1*HDMI,1*LVDS/eDP,1*M.2 E key,1*M.2 B key,1*2.5GbE LAN,1*GbE LAN PHY,1*SATA 3.0,1*USB 3.2 Gen 2 x 1,1*USB 3.2 Gen 1,2*USB2.0,GPIO,2*COM,TPM2.0,DC-in 12V,Non-WT,SINGLE
  • 916-CF16-012
  • MS-CF16/606-CF16-220/806-CF16-027 30 OPT:A ASL X7433RE,LPDDR5 8GB,1*HDMI,1*LVDS/eDP,1*M.2 E key,1*M.2 B key,1*2.5GbE LAN,1*GbE LAN PHY,1*SATA 3.0,1*USB 3.2 Gen 2 x 1,1*USB 3.2 Gen 1,2*USB2.0,GPIO,2*COM,TPM2.0,DC-in 12V,WT,SINGLE
  • 916-CF16-013
  • MS-CF16/606-CF16-230/806-CF16-026 30 OPT:B TWL N150,LPDDR5 8GB,1*HDMI,1*LVDS/eDP,1*M.2 E key,1*M.2 B key,1*2.5GbE LAN,1*GbE LAN PHY,1*SATA 3.0,1*USB 3.2 Gen 2 x 1,1*USB 3.2 Gen 1,2*USB2.0,GPIO,2*COM,TPM2.0,DC-in 12V,Non-WT,SINGLE

Packing List

  • Part Number
  • Description
  • Quantity
  • K10-3004466-V03
  • LAN LED Cable, 150mm
  • 2
  • K1B-3008067-V03
  • USB Cable, 150mm
  • 1
  • K1D-3010008-V03
  • SATA Cable with Power, 150mm
  • 1
  • K1G-3002069-V03
  • DC Power Cable, 150mm
  • 1
  • K14-3018001-V03
  • COM PORT Cable, 150mm
  • 1

Optional Item

  • Part Number
  • Description
  • E31-0807850-K08
  • Heatspreader
